Polyvinyl Chloride Insulated Wire
UL Style 1007

Application

Internal wiring of appliances. Tags may indicate the following : 600V peak - for electronic use only.

Characteristics

- Rating temp. & Volt : UL 80°C 300V, CSA 90°C 300V
- Flammability : VW-1, FT1, JQA -F-
- The highly workable qualities of the hi-wrap wire facilitates. easy soldering, wrapping,
  clamping and connecting.

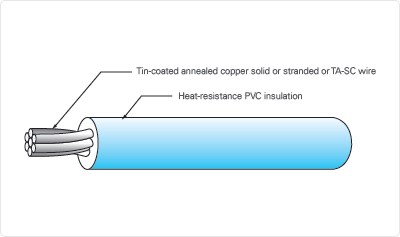

Construction

- Tin-coated annealed copper solid or stranded or TA-SC wire
- Heat-resistance PVC insulation
