Polyvinyl Chloride Insulated Wire
UL Style 1015
- Application
- Internal wiring of appliances. Tags may indicate the following : 2500V peak - for electronic use only.
- Characteristics
- - Rating temp. & UL 80,90,105°C 600V, CSA 105°C 600V
- Flammability : VW-1, FT1, JQA -F-br> - The highly workable qualities of the hi-wrap wire facilitates. easy soldering, wrapping, clamping and connecting.

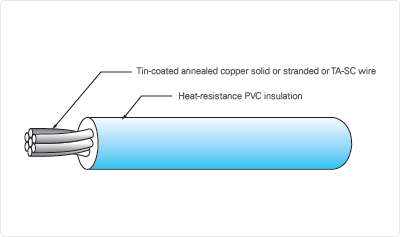

- Construction
- - Tin-coated annealed copper solid or stranded or TA-SC wire
- Heat-resistance PVC insulation

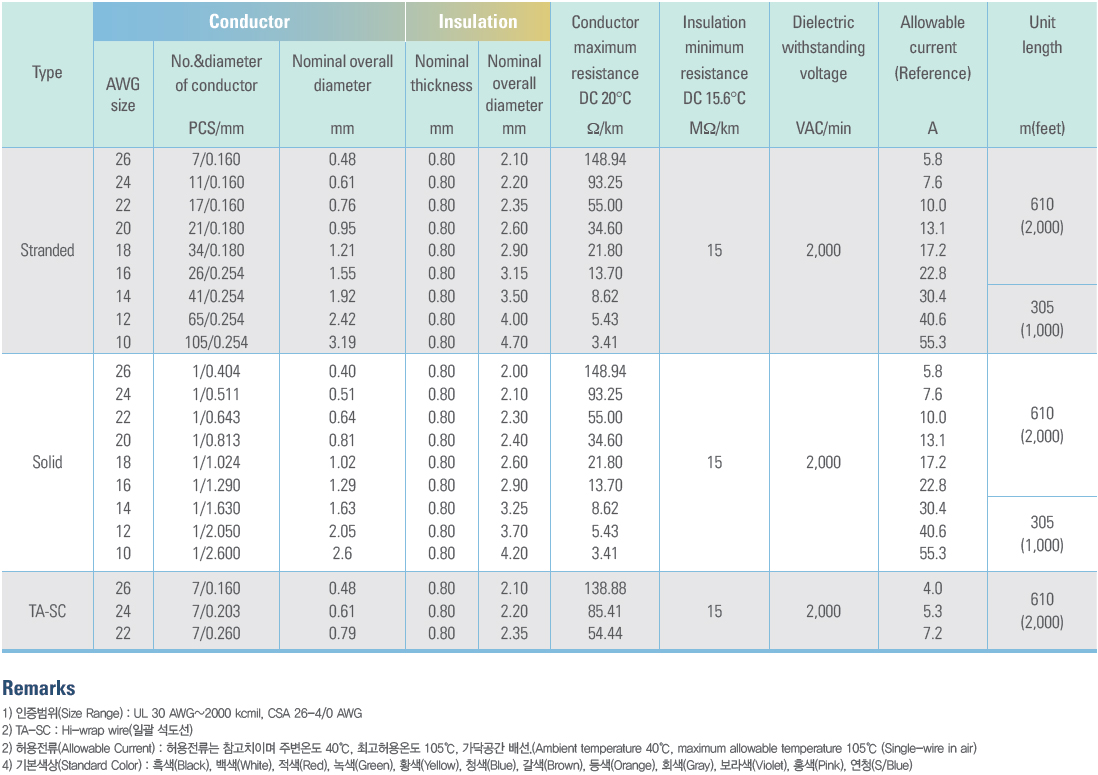

Specifications
