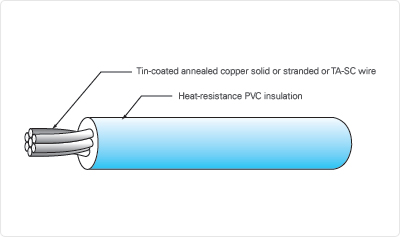

Polyvinyl Chloride Insulated Wire
UL Style 1283 / 1284
- Application
- Internal wiring. Tags may indicate the following : 2500 Volts peak - for electronic use only.
- Characteristics
- - Rating temp. & Volt : UL 105°C 600V, CSA 105°C 600V
- Flammability : VW-1, FT1, JQA -F-
- The highly workable qualities of the hi-wrap wire facilitates. easy soldering, wrapping, clamping and connecting.

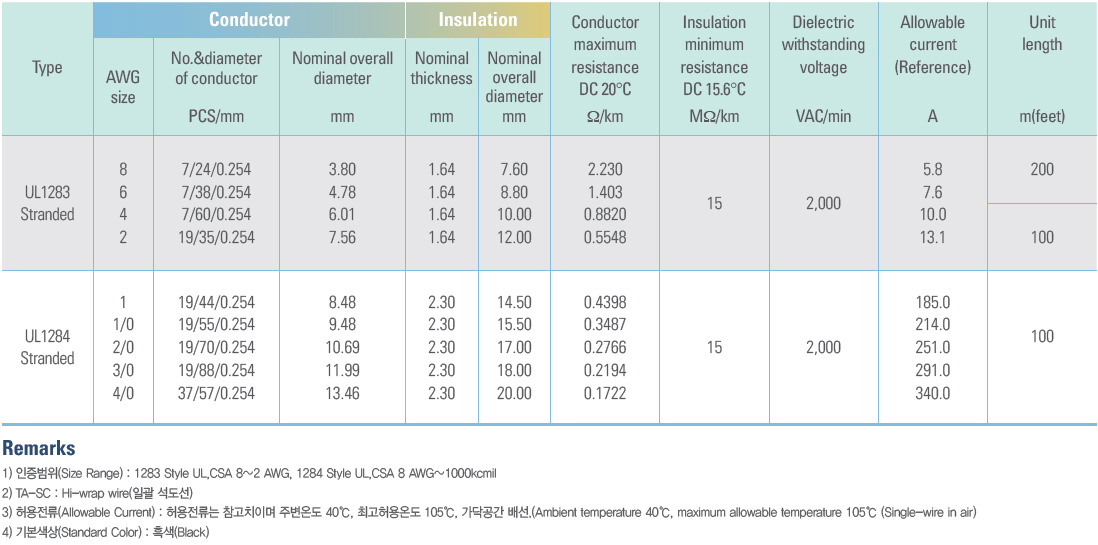

Specifications
